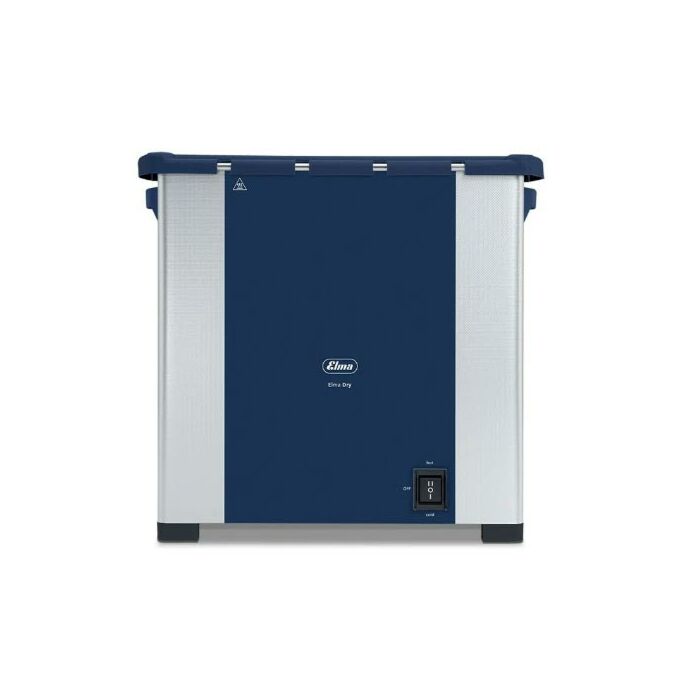

Elmadry TD 120 Drying Unit 220–240V – Professional Hot & Cold Air Dryer for Ultrasonic Cleaning Applications
The Elmadry TD 120 Drying Unit from Elma Schmidbauer GmbH is a high-performance drying solution engineered for professional workshops, jewellery makers, production environments and service applications where clean, residue-free drying is essential after ultrasonic cleaning.
Following ultrasonic cleaning, items are first rinsed in the basket using mains (municipal) water to remove cleaning agents, then immersed or rinsed with distilled or fully desalinated water to eliminate mineral residues and prevent stains or water marks. The basket can then be placed directly into the Elmadry TD 120, providing a seamless and efficient post-cleaning workflow.
Designed with both hot air (up to 70°C) and cold air (room temperature) modes, this versatile drying unit is suitable for both robust and sensitive parts. The warm air setting ensures rapid, effective drying, while the gentle cold air function allows quick cooling or safe drying of temperature-sensitive materials.
Its intelligently designed lid activates the hot air mode when closed, while integrated ventilation slots create maximum airflow turbulence for even drying and efficient moisture removal. Damp air is directed outside the chamber, improving drying performance while reducing energy consumption.
To maintain cleanliness, the Elmadry TD 120 features a replaceable 33ppi dust filter, preventing airborne particles from re-contaminating freshly cleaned items. Combined with a drip-proof stainless steel housing and automatic safety shut-off to prevent overheating, this drying unit delivers dependable, user-safe operation in demanding environments.
Key Features:
- Professional drying unit for ultrasonic cleaning workflows
- Hot air drying up to 70°C
- Cold air mode for gentle drying and rapid cooling
- Simple 3-position toggle switch: Off / Warm Air / Cold Air
- Replaceable dust filter (33ppi) prevents re-soiling
- Lid with ventilation slots for enhanced airflow turbulence
- Energy-saving cover design
- Automatic over-temperature safety shutdown
- Drip-proof stainless steel housing
- Suitable for different basket sizes
- Gentle airflow for delicate or sensitive components
Technical Specifications:
- Power Supply: 220–240V
- Total Power Consumption: 570W
- Heating Power: 550W
- Maximum Temperature: 70°C
- External Dimensions (H x W x D): 320 x 340 x 285 mm
- Internal Dimensions (H x W x D): 200 x 300 x 240 mm
- Weight: 6.1 kg
- Material: Chrome steel / Stainless steel housing (manufacturer clarification recommended)
The Elmadry TD 120 is an excellent choice for jewellers, watchmakers, dental labs, precision workshops and manufacturing professionals who require clean, safe and efficient drying after ultrasonic cleaning.
Frequently Asked Questions
Q: What is the Elmadry TD 120 used for?
A: It is designed to dry components after ultrasonic cleaning, particularly in jewellery workshops, production facilities, laboratories and service environments.
Q: Does the Elmadry TD 120 use both hot and cold air?
A: Yes, it offers warm air drying up to 70°C and cold air mode for gentle drying or cooling parts to room temperature.
Q: Why should distilled or desalinated water be used after rinsing?
A: Distilled or deionised water helps prevent mineral deposits, stains or water marks from forming during drying.
Q: Is it suitable for delicate jewellery or sensitive parts?
A: Yes, the gentle airflow and cold air mode make it ideal for delicate items.
Q: Does it include safety features?
A: Yes, it has automatic over-temperature shut-off for enhanced user safety.
Q: How does it prevent contamination after cleaning?
A: A replaceable dust filter stops airborne dust from re-contaminating cleaned items during drying.
