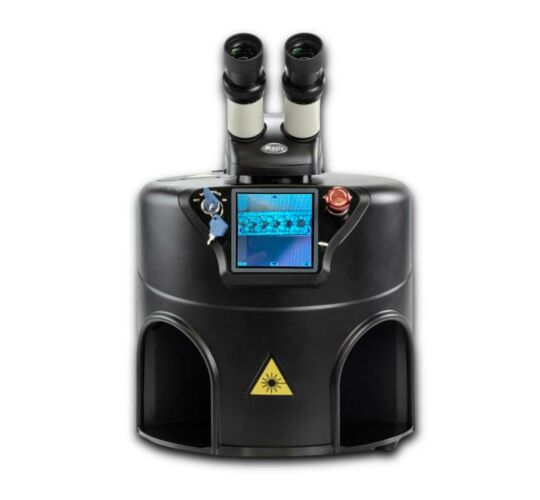

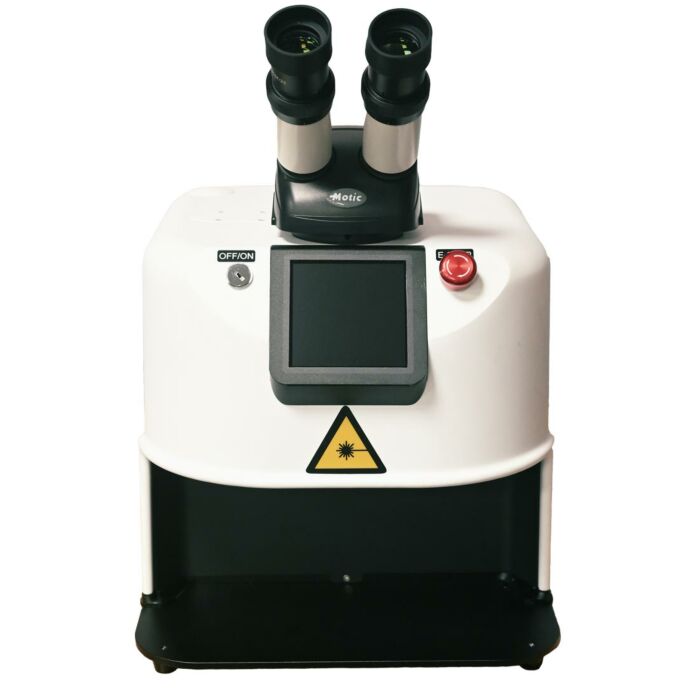

Onyx Laser Welder
The Onyx Laser Welder is a compact welder perfect for any workshop due to the small foot print of this unit. This welder circumference is 30cm and the height of the welder is 28cm.
The 3.5kW of peak power meaning that welding silver is easy with no issues at all. In addition to silver this powerful laser will cleanly weld gold, platinum, palladium and steels.
This Onyx Laser Welder will help you with those tricky every day jewellery tasks such as -
- Re-Tipping,
- Ring Sizing,
- Assembly of jewellery by tracking the work in place without the need to third arms or binding wire,
- Attaching jump rings and bolt rings
- Repairing porosity on castings
- Repairs around stones
- Chain repairs
- Platinum work, including platinum re-rizing
- No obvious solder lines
The Onyx laser welder has a built in camera, making lining up easy. This combined with the user-friendly touch screen that has full control of the settings. This laser has an efficient cooling system which helps with the demanding jobs. The compact foot print does not compromise with the spacious chamber to allow ample room for the easy handling of items.
The Onyx Laser Welders product parameters are -
- Laser type - 1064nm YAG
- Spot diameter - 0.15 - 2.00mm
- Pulse Width - 0.1 - 10ms
- Frequency - 1.0~10.0HZz (Continuously Adjustable)
- Maximum Power 0 3.5KW
- Air Cooling System
- Pump Source - Xenon Lamp
- Orientation and Positioning Microscope + HD digital CCD camera system
- Display Touch Screen 10x multicolour HD Digital CCD
| Product Code | TOOLSLZONY |
|---|---|
| Weight | 13.500000 kg |
| Image info | Product images are for illustrative purposes only and may differ from the actual product |
| Brand | Onyx |
| Range | Welder |
| MPN | LZONY |
| Shipping Type | Courier |
